NOKIA N 80 MMC WAYS

Here is two picture about your nokia n 80 mmc. In two picture you can see the mmc ways and you can solved your problem. You should also check the red marked parts for your mmc problem.

N 80 KEYPAD LCD LIGHT SOLUTION

If your nokia n 80 keypad lcd light is not working. You should check this parts below the pic.

NOKIA N 80 LCD SOLUTION

To repair your nokia n 80 lcd at first you should resolder this two IC.Then reball this two IC or change this two IC below the picture.

NOKIA N 80 KEYPAD SOLUTION

Here is a solution for our nokia n 80 keypad. If your nokia n 80 keypad is not working replace the keypad ic. If you have no ic you can make this jumper below the picture.

NOKIA N 80 HANG SOLUTION

Here is a solution for your nokia n 80. you can solve your problem to see the the picture below and its instruction.

N 80 CHARGING SOLUTION & CHARGING WAYS

In the 1st picture:- to solve your nokia n80 charging problem you should make this red marked jumper.

In the 2nd picture:-  you should check.....V2000, R2000, F2000, L2000, C2012. If this component are bad replace all.

N 73 WHITE DISPLAY SOLUTION

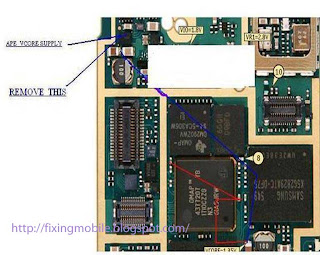

In the 1st picture:- you should make the red line then make the blue line. Try two way one by one.Check vcore supply if it's bad remove this.

In the 2nd picture:- you should remove this zokus and apply this jumper below.

NOKIA N73 SPEAKER & VIBRA WAYS

If your nokia n73 speaker right not working you should check..... 1-L6518; 2-L6517; 3-C7591; 4-C7592; 5-L6521; 6-N6509. Speaker left not working you should check...... 1-C9086; 2-C9085; 3-C9084; 4-L6519; 5-L6520; 6-C7513; 7-C7515; 8-L6522; 9-N6509 and your vibrator is not working you should check...L6509.

NOKIA N73 SIM WAYS AND OFFLINE SOLUTION

Nokia n73 sim ways and offline solution. If you want to solve this offline mode, just remove this capacitor--C2700.

NOKIA N73 POWER SOLUTION

If your nokia n73 have no power, just make this jumper below.

NOKIA N73 NETWORK PROBLEM SOLUTION

Network solution for your nokia n73. Any kind of network problem you should check the red marked IC and other components.

NOKIA N73 MMC PROBLEM SOLUTION

In the 1st picture:- Check the red marked IC. If this IC damaged you can make this jumper.
In the 2nd picture:- Re solder this UI connector and change all red marked IC.

NOKIA N73 MIC&EARPIECE WAYS

n73, Mic and earpiece ways can help you to find out your  main problem.
You may check out the red mark capacitor for your mic&earpiece problem.

Here it's very important for all.

NOKIA N73 LED PROBLEM SOLUTION

If your nokia n73 lcd is having any problem.
At first check this mark track.If it's ok then
change led driver ic.

NOKIA N73 KEYPAD IC JUMPER SOLUTION

If your nokia n73 keypad is not working just remove red mark ic and replace it.
If you have no keypad ic.  you can make this jumper below.

NOKIA N73 BOARD PCB JOYSTIC

Joystic layout for your nokia n73.
You can find out your joystic layout from here.

NOKIA N72 PICTURE

Nokia n72 pic.

NOKIA N73 FULL PCB

Full pcb for your nokia n73

NOKIA N73 FRONT CAMERA SOLUTION

If your nokia n73 front camera is not working
just make a jumper below the picture.

NOKIA N73 CHARGING PROBLEM

To solve this problem just  follow the pictures below and it's instruction.

NOKIA N70 PICTURE

Nokia n70 picture.
If you have any problem in your mobile
handset.If you want to solve this problem
just visit- http://fixingmobile.blogspot.com/

NOKIA N70 WHITE SCREEN HANGING SOLUTION

To solve this problem just follow the instruction.

NOKIA N70-N72 SIM IC JUMPER

Nokia n70-n72 sim ic jumper. If you have no sim ic just make a jumper like this.

NOKIA N70 AND N72 SIGNAL SOLUTION

Nokia n70-n72 rx-tx solition.

NOKIA N70 RINGER WAYS
